Measurements + Accessories for Water & Waste Water Treatment



Water & Waste Water Treatment Catalogue: Download




Turbidity

MicroTOL

Designed for filtered water, raw water, waste water final effluent & industrial applications.

- Nephlometric Measurement.

- 0-100 NTU range.

- Fast response & easy calibration.

- Accurate, reliable & cost effective.

- Certified to CE, UL, CSA (ETL, ETLc).

- With ultrasonic cleaning.









Data Sheet



Manual



Specifications








Suspended Solids

QuadBeam MXD75

Provides stable, reliable & robust suspended solids measurements for industrial applications & harsh environments.

- Measurement ranges from 0-100NTU up to 0-25 g/l activated sludge.0-4% for Coal Dust.

- Suitable for immersion into tanks & insertion into pipes. A variety of accessories are available for installation.

- Fully configurable electronics unit with 4-20mA output & 2x relay outputs. Available in 1, 2 or 3 Channel versions.







Data Sheet



Manual










Suspended Solids

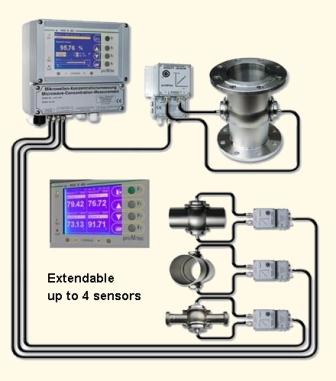

ProMtec (Microwave Technology)

- Microwave (contactless) measurement.

- Liquid, paste or suspension media.

- Connection via coaxial cables (max. 150m).

- 4 x isolated outputs 4-20mA.

- RS232 interface.







Data Sheet





Manual






Moisture

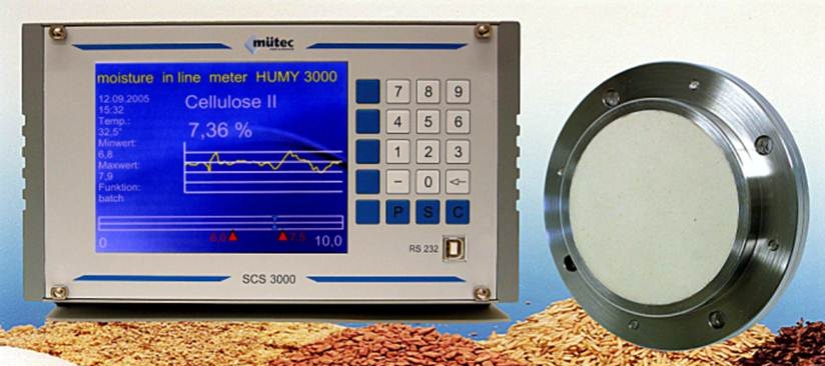

HUMY 3000 Moisture Measuring System

- In-line measurements.

- Moisture measurement range: 0.001%-50%

- High precision of up to 0.1%.

- Digital data transmission (up to 1km).







Data Sheet




Sludge Blanket Interface

EchoSmart

- Frequency designed specifically for Wastewater applications.

- Optional turbidity sensor.

- NEMA 4x enclosure.

- Virtually maintenance free.

- Up to 16 sensors per system.

- 4-20mA or radio link on output signal.

- RS485/Modbus serial communication.

- Multiple interface detection capability.







Data Sheet



Manual










Dissolved Oxygen

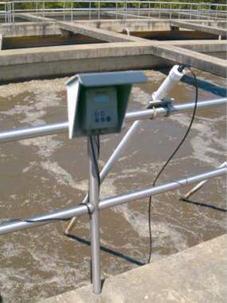

Barben PDO2 Optical Probe

- Easy installation.

- Direct insertion into aeration tank.

- No need for floats or other costly mechanisms.

- Not pressure sensitive, can be inserted at any depth.















Data Sheet



Manual










Water Quality

FLS ChemX - pH/ORP & Conductivity Controller

- 240 Vac, or 24 Vdc/ac.

- 1 x 4-20mA - Recording.

- 2 x Relay or OC, Configurable.

- IP 67.

- Manual or auto temperature compensation Sensor (PT100-PT1000)





Data Sheet



Manual






Water Quality

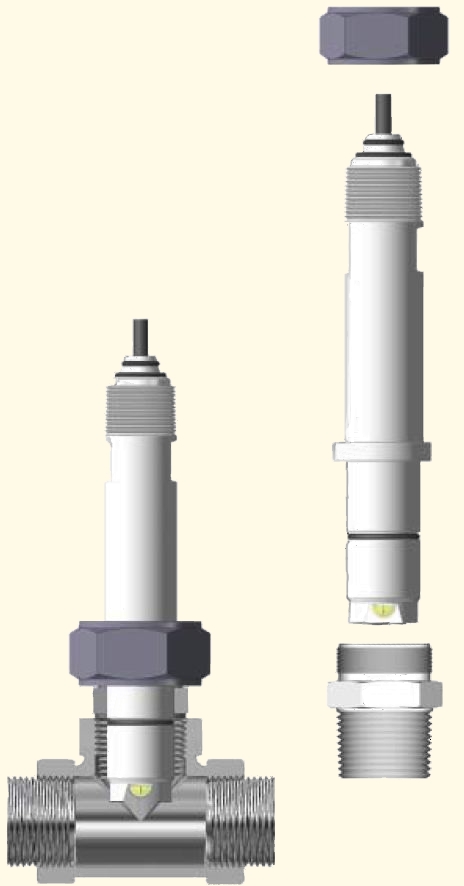

Barben Long Life pH & ORP Sensors

Immersion or Insertion with Quick Disconnect Adaptor

 Longer lasting performance.

- Minimal maintenance.

- Immersion or in-line installation.

- With temperature compensation.

- Poison resistant.

- pH range: 1-13pH.

- Temp range: 0-100'C.

- pH or ORP sensor.

- Patented Axial Ion Path reference technology increases electrode lifespan in harsh application.

- Proprietary low-noise, high temperature signal cable.

- Specialized glass formulations.

- Universal compatible with all manufacturer's analysers.

Insertion:

- Max.pressure: 150psig (10 bar or 1000kpag)

- Quick & easy remove & install for checking & calibration.

- Sensor insertion depth from 2.6 to 12 inches (measured rib to tip of sensor).







Data Sheets


Streaming Current

Streaming Current Detection for Optimisation & Control

- Easy to set up & calibrate.

- Keypad navigation.

- Draw a post dosed sample.

- Monitor the sample charge.

- Process the signal in a control device.

- Send alarm messages to the operator.

- Close the automation control loop for coagulation dosing via 4-20mA output.



Data Sheets

Manuals




Desinfection

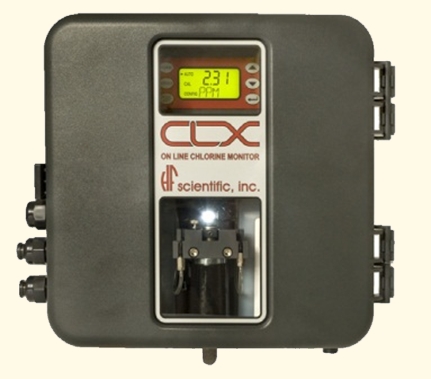

CLX OnLine Residual Chlorine Analyzer

The CLX comes with 4-20mA & RS-485 Modbus, backlight display, inline pressure regulator, power supply, replacement tubing / cuvette kit (one year supply) & owners manual. Reagents purchased separately.





Data Sheet



Manual




Desinfection

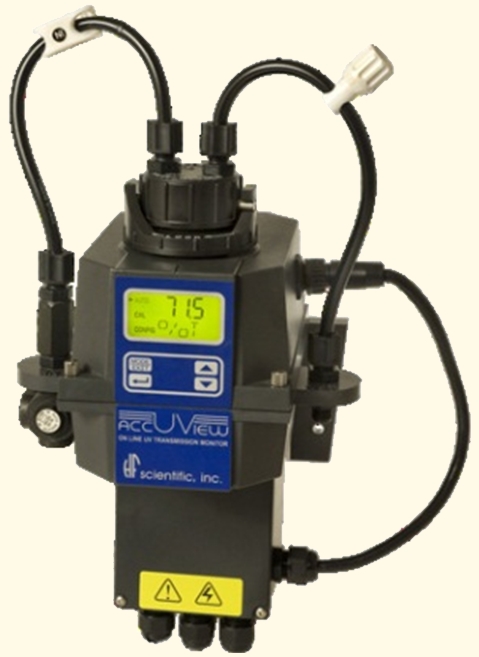

AccUView OnLine UV % Transmission Analyzer

100 - 240 VAC for pressurized or Gravity Feed Potable Water Systems

Each unit includes 4-20mA output with isolator, two alarm contacts, inline flow & pressure regulator, dessicant, power supply, Standard 100% T, Spare cuvette with Ultrasonic Transducer & operator's Manual.





Data Sheet



Manual




Desinfection

AccUView OnLine Wastewater UV % T Analyzer

Each unit includes Stainless Steel (304) Enclosure with window for viewing of analyzer, spare cuvette, spare flow through assembly, 4-20mA with isolator, backlight display, bellows pump, power supply, desiccant, 500ml of 100% T water & 50 feet of source drain tubing.





Data Sheet



Manual


Dosing

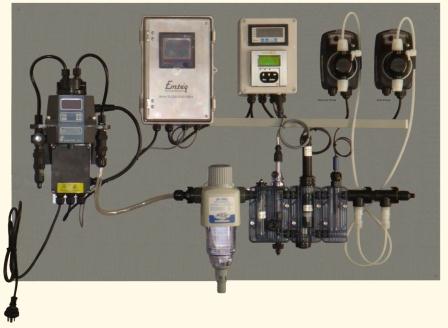

Dosing Panels

Chlorine Dosing & pH with Self Cleaning Pre-Filter

E-CL1-8x-F4 Chlorine Dosing System - With Free Chlorine Analyser & Dosing Pump

E-CL3-8-F4 Chlorine Dosing System - With Free Chlorine Analyser & Dosing Pump

E-CL6-8-F3 Chlorine Dosing System - With pH Correction and Turbidity Measurement

E-CL52-9-F4G1D14 Chlorine Dosing System - With pH Correction and Data Logging/Recorder





Overview



Data Sheet- E-CL1-8-F4



Data Sheet - E-CL3-8-F4



Data Sheet - E-CL6-8-F3



Data Sheet - E-CL52-9-F4G1D14



Manual






Dosing

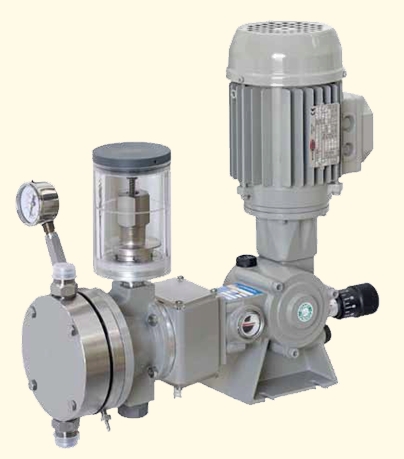

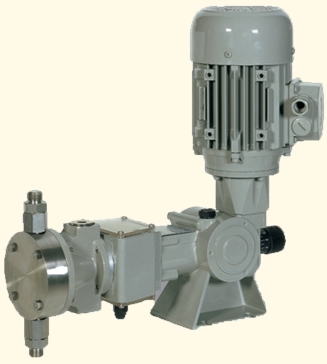

Motor Pumps

- B/BR Series - Hydraulic Diaphragm.

- D Series - Mechanical Diaphragm.

- A Series - Piston.

- Polyethylene tanks.

- Safety relief valve & back pressure valves.

- Injection valves.

- Foot valve.

- Hydropneumatic accumulators.

- Calibration pot.

- Dosing rate: 4-1400 l/hr.









Overview



Data Sheet - B/BR Series



Data Sheet - D Series



Data Sheet - A Series








Dosing

Solenoid Pumps

4 Sizes: 1)  2-8, 5-5, 7-2

             2)  7-14, 8-2, 10-0

             3)  3-12, 4-10, 5-8

             4)  10-4, 12-2, 14-0

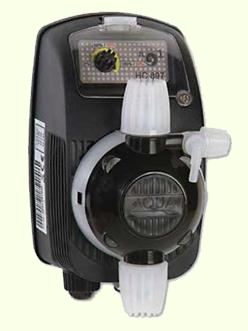

- HC897 - ON/OFF Control.

   - Adjustable stroke rate.

   - 0-20% 0-100%.

   - PVDF head.

   - Input for interlock.

   - 4 sizes as above.

- HC997 - Proportional Dosing.

   - PVDF head, viton seals.

   - Pulse input.

   - 4-20mA timer.

   - 7 Day timer.

   - 4 sizes as above.

- HC200PH/RX - Proportional Dosing.

   - pH & ORP sensor input.

   - Stroke length & frequency adjustment.

   - Input for interlock.

   - Input for interlock.

   - Size (l/hr-Bar): 2-8, 4-18, 9-9, 15-4.







Overview



Manual - HC897



Manual - HC997


Standards & Reagents

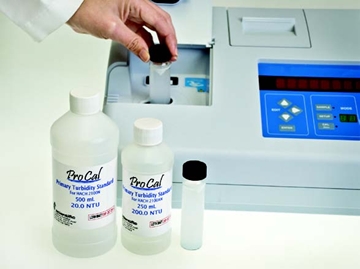

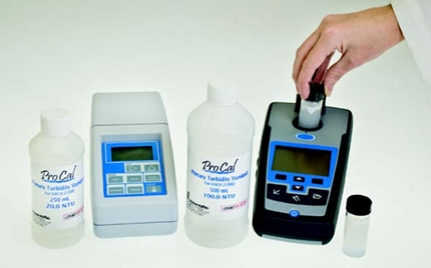

Pro Cal Primary Turbidity Standards (for Hach(R) Instruments)

Pre diluted, factory certified*,& ready for use with Hach(R) process,laboratory & field instruments, as well as the HF Scientific product line & other manufacturer's instrumentation. The ProCal standard formula utilizes a preservative that enhances stability, yet it is safe & biodegrades rapidly. Custom NTU available.

Available pre-diluted standard: 0.0, 1.0, 10, 20, 100, 200, 800, 1000, & 4000.



Standards certified * for use with Hach(R) 2100AN Laboratory Turbidimeter.

Standards certified * for use with Hach(R) 2100P Portable Field Turbidimeter.









Data Sheet


Standards & Reagents

Chlorine Testing

PPD-2 DPD Powder Pop(R) Dispenser

PPD-2 DPD Powder Pops(R)

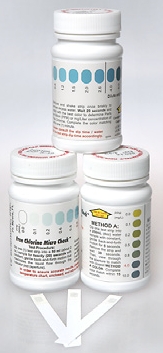

Chlorine Micro Check Test Strips

J.A.W. Reagents









Data Sheet - DPD Powder Pop



Data Sheet - J.A.W. Reagents


Field Measurement

MicroTOL - Field Turbidity.

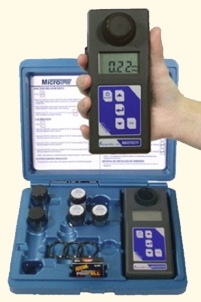

MicroTPW / TPI - Instruments.

Includes carrying case, one set of calibration standards, indexing rings, 4AAA alkaline batteries operator's manual & measuring cuvettes with light shield caps.



DRT -15CE - Instruments.

Includes battery charger, sample cuvette w/light shield cap, 0.2 NTU reference standard, recorder output plug & instruction manual.







Data Sheet - TPW/TPI



Data Sheet - DRT-15CE





Manual - TPW/TPI



Manual - DRT-15CE


Laboratory Measurement

MicroTOL - Laboratory Turbidity.

Micro100 - Instruments.

Includes a complete set of calibration standards (0.02, 10 & 1000NTU), two measuring cuvettes with light shield cap & operators manual.



Micro1000 - Instruments.

Includes a complete set of calibration standards (.02, 10, 100 & 1750 NTU), two measuring cuvettes with light shield caps, operators manual & plug-in power adaptor.







Data Sheet - Micro100



Data Sheet - Micro1000





Manual - Micro100



Manual - Micro1000
